Double Acting Cylinder Diagram: A Complete Guide to Understanding Pneumatic Motion

double acting hydraulic cylinder circuit diagram. Hydraulic cylinder actuator diagram

Ever wondered how the humble double acting cylinder transforms compressed air into powerful, controlled motion? In this guide, we’ll walk through the classic diagram of a double acting cylinder, decode each component, and explore how the schematic illustrates real‑world operation. By the end, you’ll be equipped to read any double acting cylinder diagram, troubleshoot common issues, and appreciate why this design is the backbone of many pneumatic systems.

What Is a Double Acting Cylinder?

A double acting cylinder is a type of pneumatic actuator that uses compressed air to move a piston in both directions. Unlike a single acting cylinder, which relies on external forces (like springs or gravity) for return motion, a double acting cylinder pulls the piston one way with one airflow and pushes it back with a separate airflow. This bidirectional force makes it ideal for applications requiring consistent, reversible motion—think conveyor systems, press machines, and automated lifting equipment.

Key Components in the Diagram

The standard diagram of a double acting cylinder typically contains the following elements:

Air Inlet Ports: Two ports—usually labeled “1” and “2”—receive air from the supply. The airflow direction dictates piston movement.
Check Valves: Located on each port, these ensure air flows only in the intended direction and prevent backflow when the cylinder is not actively moving.
Piston & Rod: The piston sits inside the cylinder bore, while the rod extends outside to transmit force. The rod’s diameter and material affect load capacity and speed.
Sealing Rings: O‑rings or lip seals maintain pressure integrity and protect against leaks.
End Caps: These close the cylinder ends and house the ports.

Below is a visual representation of the typical double acting cylinder layout:

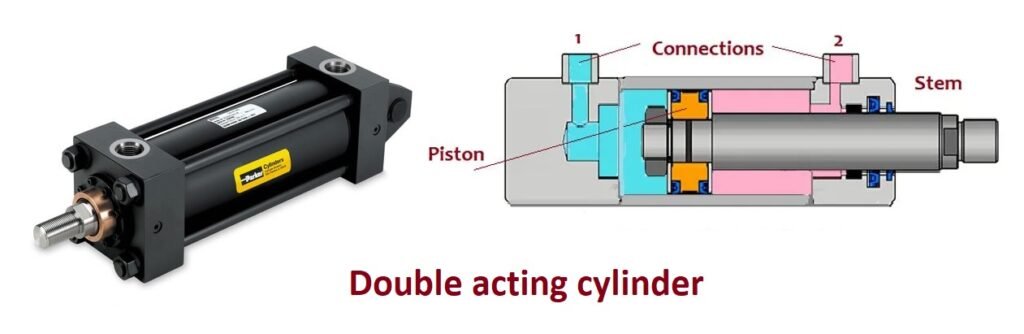

Schematic of a double acting pneumatic cylinder showing air inlet ports, check valves, piston, and rod.

How the Diagram Illustrates Operation

Let’s walk through the motion sequence depicted in the schematic:

Forward Stroke: Air enters through port “1,” travels past the check valve, and pushes the piston forward. The rod extends outward, delivering the desired mechanical action.
Return Stroke: After the forward stroke, the pressure in port “1” drops and air from port “2” pushes the piston back. The rod retracts, completing the cycle.

Because each stroke uses separate air supply lines, the system can maintain consistent force regardless of load variations. The diagram also often highlights a pressure relief valve—essential for protecting the cylinder and system from over‑pressurization.

Common Variations in Double Acting Cylinder Designs

While the basic layout remains the same, manufacturers tailor double acting cylinders for specific needs:

Variable Stroke Length: Some cylinders feature adjustable end caps or threaded rods to alter the travel distance.
High‑Pressure Models: Industrial applications may require cylinders rated for 300 psi or higher; the schematic will often indicate the pressure rating near the ports.
Sealed vs. Open Design: Sealed cylinders contain all ports and seals within a single housing, whereas open designs expose ports for easier maintenance.
Specialized Rods: For high‑speed or heavy‑load operations, manufacturers use forged steel rods with low‑friction coatings.

Practical Applications and Benefits

Double acting cylinders excel in systems that demand:

Precise positioning—critical for packaging, sorting, and robotics.
Balanced forces—ensuring equal push and pull strength.
Reduced cycle times—because both strokes use pressurized air, the cycle completes faster than with single acting setups.
Versatility—suitable for vertical, horizontal, or inclined movements.

Understanding the diagram helps engineers choose the right cylinder size, pressure rating, and mounting configuration for these applications.

Troubleshooting Tips Based on the Diagram

When a double acting cylinder isn’t performing as expected, the diagram can be your first diagnostic tool:

Leak Detection: Look for missing or damaged O‑rings indicated by gaps around the piston bore.
Imbalanced Force: A pressure differential between ports “1” and “2” often shows up as a misalignment in the piston’s travel; check the pressure gauges on the respective ports.
Valve Malfunction: If the piston stalls during a stroke, the check valve may be stuck. The diagram will show the valve’s location and orientation.
Seal Wear: Over time, seals can degrade; the schematic’s cross‑sectional view helps you identify which seals require replacement.

Conclusion

Mastering the double acting cylinder diagram is essential for anyone working with pneumatic systems—whether you’re designing a new machine, troubleshooting an existing setup, or simply curious about the mechanics behind efficient motion. By decoding the key components, understanding the flow sequence, and applying the troubleshooting insights, you’ll be able to optimize performance, extend equipment life, and ensure reliable operation across a wide range of industrial applications.
